Middle Fiber

Rugged optical-fiber converters for your live multi-camera workflows. Less cable drums. Less weight. Longer distances. Stronger reliability. Peace of mind!

Explore the family

3G / 6G / 12G-SDI · up to 2160p60
Neutrik OpticalCON Duo + opticalCON MTP 12/24 rugged connectors
Low power consumption & very little heat

10 cameras
through one cable

12G SDI signal
up to 2160p60

10km global reach
over optical fiber

9 models in the
family, today

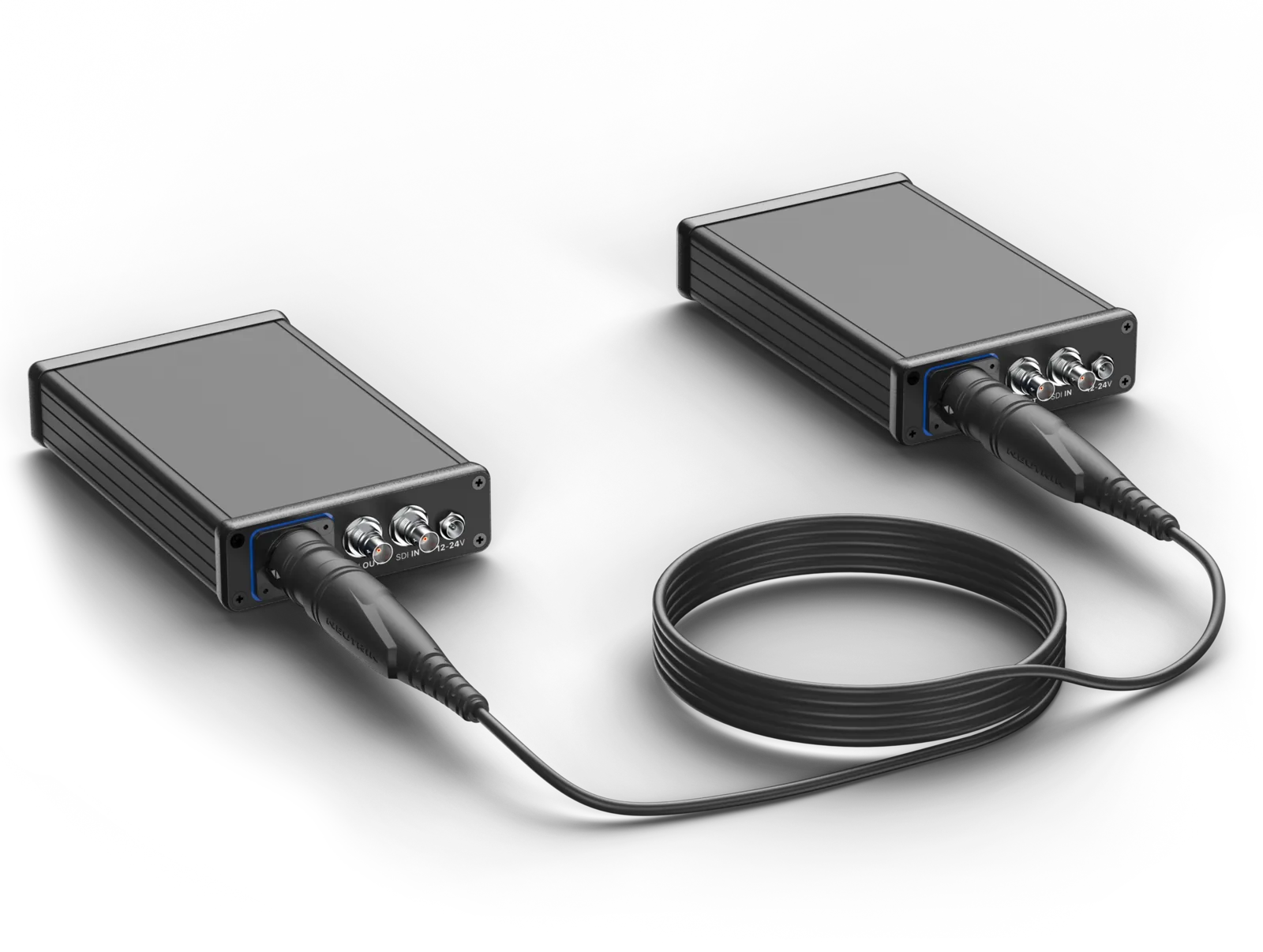

Single camera — one Fiber Camera Box PTZ connected straight to another over a single fiber

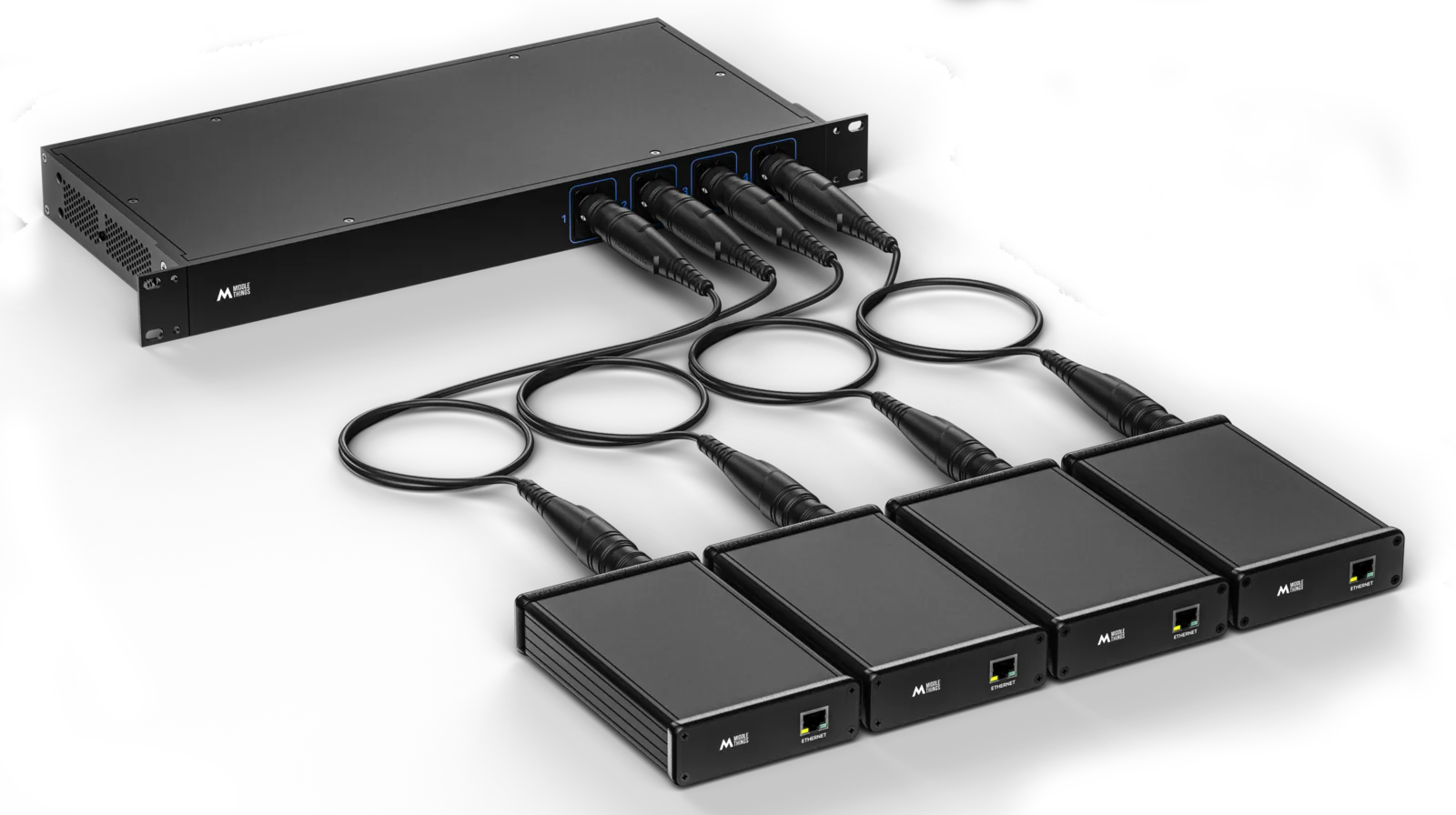

Multi camera — one Fiber Dispatch 4 PTZ in a rack feeding up to four Fiber Camera Box PTZ heads

One Rugged Cable

Video, return and control — one fiber cable.

The Fiber Camera Boxes convert your Camera's SDI OUT signal and receive an SDI Return Program (which also embed camera control, tally, intercom for Blackmagic Cameras) through the same fiber cable. The PTZ versions add a 1Gb LAN lane on top of the two video channels, so a remote head gets its feed, its return and its IP control down the same cable.

Neutrik Connectors
One Fiber
Durable Aluminium
Low Power

Fiber Camera Box clamped to a broadcast camera, merging its SDI feed and return into a single optical fiber

On the camera

Turn any camera into a fiber camera.

The Fiber Camera Box clamps onto the V-Lock and merges the camera's 12G-SDI feed and its program return into one lightweight optical fiber — immune to interference and good for kilometres without a repeater. A compact aluminium body, powered straight off the camera over D-Tap, with full Blackmagic camera control and talkback down the same strand.

4K · 12G-SDI in + out
Neutrik opticalCON Duo
V-Lock · aluminium body
Blackmagic talkback
D-Tap powered

Flexible Configurations

Visualize your workflow to help you understand the different products (Unite, Bridge, Dispatch and Camera Box)

Use it for: building-to-building runs, OB trucks, large venues

Why fiber

Simplify your multi-camera workflows.

While coaxial BNC has been the broadcast cable for fifty years, optical fiber can provide many advantages over copper.

Lighter than a feather

A 100 m fiber drum is a fraction of the weight of the equivalent BNC reel. Less bulkiness and more cables in the cable pass-through.
Immune to interference

Photons don't care about LED walls, lighting dimmers, RF mics, or badly grounded transformers. Fiber pulls a clean signal through any electromagnetic mess.
Long distance

BNC tops out at ~80 m for 12G. Single-mode fiber runs for thousands of metres with zero amplification and zero dropouts. Across a campus, between two trucks, or down a stadium tunnel.
Future-proof past 12G

The same single-mode strand carrying your 12G-SDI today will carry 24G or 100G IP tomorrow — just swap the boxes at the ends. The infrastructure stays.

Ecosystem

Built for Modularity

Mix the camera-side converters with the rack-mounted converters for flexible stage box setups — every box shares the same internals, so any chain just clicks together.

The full Middle Fiber product family lined up together

12G PTZ FAMILY

Fiber 12G PTZ Series

12G SDI IN + SDI out + 1G LAN in the same cable. Mix and match across the family. Not compatible with the Fiber 12G Series.

Fiber Camera Box PTZ 12G

Same as Fiber Camera Box 12G, with an added 1G LAN port. Master variant connects to a Slave Camera Box. Slave variant connects to a Master Camera Box or a Fiber Dispatch 4 PTZ.

SDI + LAN
Master / Slave
V-Lock mount
3 W

Buy

Fiber Dispatch 4 PTZ 12G

4-camera unit with a 1G LAN port at the back — LAN + SDI IN/OUT flows out to all 4 fibers, making it the ideal partner for Camera Box 12G PTZ (Slave).

4× SDI in/out
4× OpticalCON Duo
1G LAN trunk
1U rack

Buy

12G FAMILY

Fiber 12G Series

12G SDI IN + SDI out in the same cable. Mix and match across the family. Not compatible with the Fiber 12G PTZ Series.

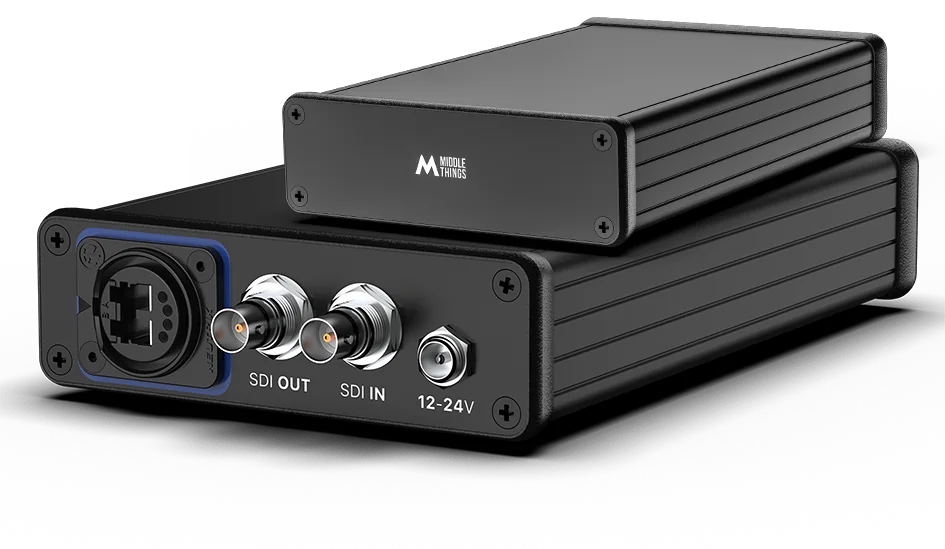

Fiber Camera Box 12G

Compact aluminium body with a V-Lock clamp. Turns 4K SDI In + Out into one OpticalCON Duo fiber. Ideal on URSA Broadcast, URSA Mini, Studio Camera 4K Pro.

SDI in + out
OpticalCON Duo
D-Tap power
360 g

Buy

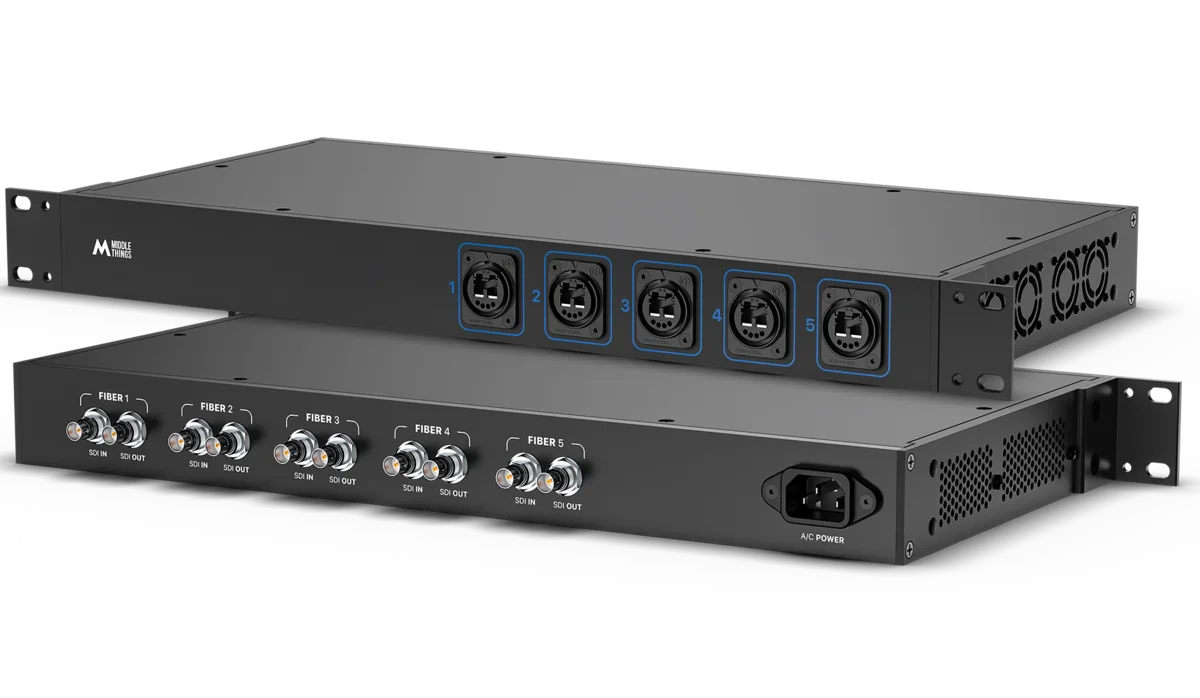

Fiber Dispatch 5 12G

1U rack converter for up to 5 cameras. 5 SDI in + 5 SDI out to 5 OpticalCON Duo fibers, on AC power, with built-in fans.

5× SDI in/out
5× OpticalCON Duo
1U rack
AC power

Buy

Fiber Unite 5 12G

Merges 5 pairs of SDI In/Out + LAN into a single MTP® 12 fiber. Drop another Unite 5 at the far end to de-merge — or land on a Fiber Bridge 5 as a stage box.

5× SDI in/out
1× MTP® 12 trunk
1× LAN
1U rack

Buy

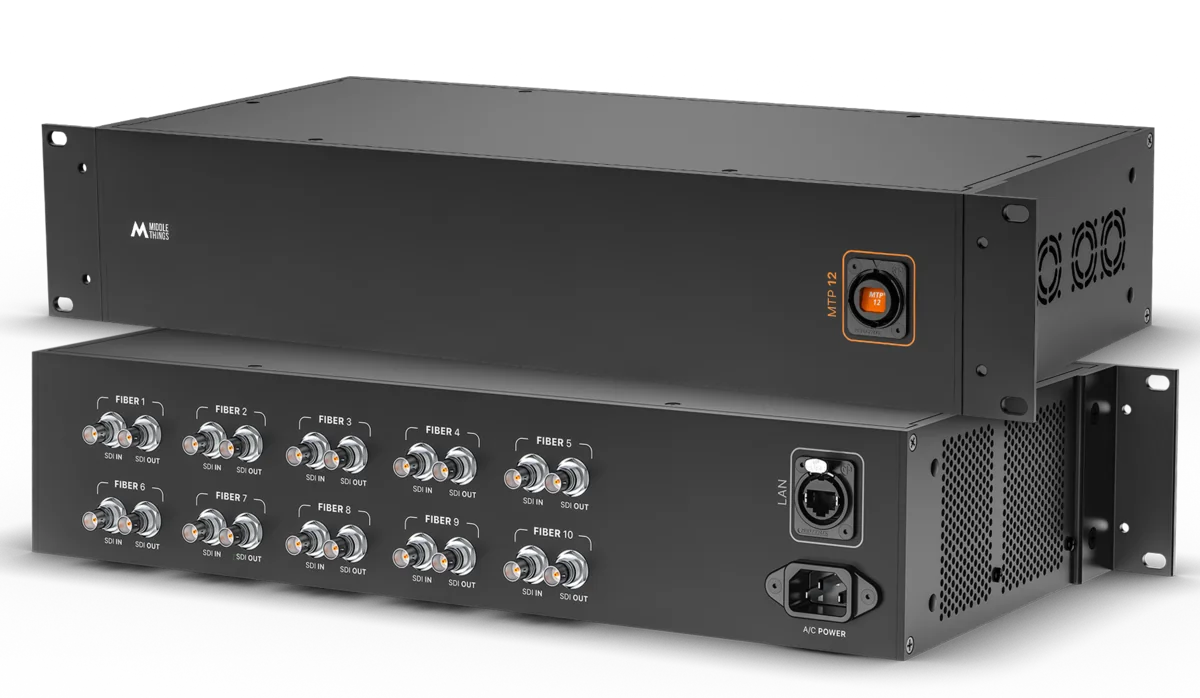

Fiber Unite 10 12G

Bigger sibling — 10 pairs of 4K SDI + LAN into one MTP® 12 trunk. Customisable on request (10G LAN, LC duplex on the back, more).

10× SDI in/out
1× MTP® 12 trunk
2U rack
40 W

Buy

Fiber Bridge 5

Passive stage box — splits an MTP® 12 trunk into 5 OpticalCON Duo pairs + LAN. Reversible. Needs zero power for the fiber side (only if LAN is used).

5× OpticalCON Duo
1× MTP® 12
1× LAN
Passive

Buy

Fiber Bridge 10

10-pair stage box — splits an MTP® 24 trunk into 10 OpticalCON Duo pairs + 2 LAN. Same passive design, ruggedised connector.

10× OpticalCON Duo
1× MTP® 24
2× LAN
Passive

Buy

Cables · the fiber itself

Optical Basic LC Duplex

The most cost-effective single-mode LC fiber cable that mates with the OpticalCON Duo connectors on the rest of the family. TPU jacket, helical steel armor, matte black. Available in nine lengths from 0.2 m to 150 m.

0.2 m → 150 m
TPU + steel armor
3 mm OD
−40 to 80 °C

Browse all lengths

3 cables, 3 budgets

Triple Connectivity

The Neutrik OpticalCON Duo connector makes the Camera Box compatible with widespread LC / LC fiber cables, as well as the rugged OpticalCON Duo & Duo Lite cables by Neutrik, designed for field use and tough handling.

OpticalCON Duo Advanced

Two LC cores in a ruggedised housing. The day-to-day workhorse built to withstand weekly intensive use. The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected. Highest durability of all three.
OpticalCON Duo Lite

Lightweight middle ground solution for regular light usage. The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.
Optical Basic

Cheapest and most cost effective fiber for backups, fixed installs or occasional use.

The Neutrik fiber connectors used across Middle Fiber — opticalCON Duo, MTP-12 and MTP-24

Engineered to survive the road

Built around rugged Neutrik optics.

Every chassis terminates in a Neutrik opticalCON connector — the same field-proven, twist-lock housings trusted on the world's touring rigs. A spring-loaded shutter snaps shut over the cores the instant a cable is pulled, so dust and fingers never reach the glass.

Macro view of a Neutrik opticalCON MTP connector — opticalCON MTP® — up to 24 cores in one twist-lock trunk.

opticalCON Duo and LC fiber connectors — opticalCON Duo & LC — the per-camera workhorse.

In the control room

Fits in your live production rack

Dispatch, Bridge and Unite are standard 1U and 2U chassis — they drop straight into the rack you already own. Built-in fans ensure proper cooling of all the converters for a hassle free workflow.

Need something custom?

10G LAN trunks, LC-Duo replacements on the back, longer MTP runs, or a configuration we haven't shipped before — drop us a line. The Middle Fiber range is built around the same internals, so most custom requests are a matter of re-fronting an existing chassis.

Email [email protected]
